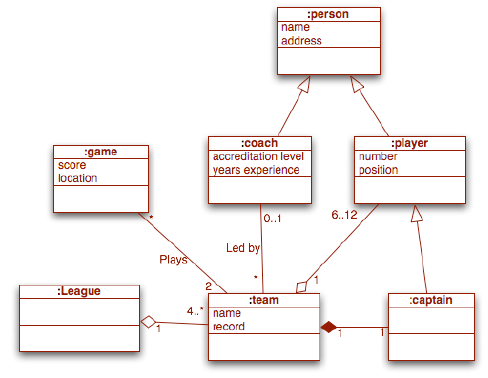

A hockey league is made up of at least four hockey teams. Each hockey team is composed of six to twelve players, and one player captains the team. A team has a name and a record. Players have a number and a position. Hockey teams play games against each other. Each game has a score and a location. Teams are sometimes lead by a coach. A coach has a level of accreditation and a number of years of experience, and can coach multiple teams. Coaches and players are people, and people have names and addresses. Draw a class diagram for this information, and be sure to label all associations with appropriate multiplicities.
Notes: captain could alternatively be represented as a second, named association
between player and team.
Assumptions: each player only plays on one team, each captain only captains one
team, each team only plays in one league.
